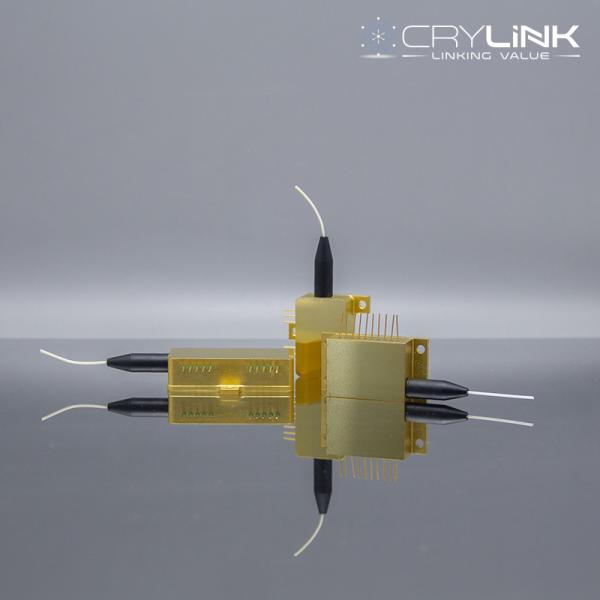

105um Fiber 808nm Narrow Linewidth Semiconductor Laser

Product Categories

Nanjing Crylink Photonics Co.,Ltd

Contact Now

Name: 105um Fiber 808nm Narrow Linewidth Semiconductor Laser
Brand: CRYLINK
Price: 1 USD

Brand Name : CRYLINK

Model Number : 808nm Narrow Linewidth Semiconductor Laser Module

Certification : ISO9001

MOQ : 1

Price : custom

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Model and Parameter

Model		CL808-0.5-3W-NSL003	CL808-0.5-600mW-NSL(PD)004
Optical Parameter	Continuous Output Power (mW)	3000	600
	Center Wavelength (nm)	808±0.5	±0.5
	Spectral Width (nm)	≤0.1	≤0.1
Electrical Parameter	Threshold Current (mA)	0.80	0.3
	Operating Current (mA)	4.0	1
	Operating Voltage (V)	1.9	1.8
	Differential Efficiency (W/A)	≥1.0	1
	PD Current (µA)	200-1000	<2000
	TEC Maximum Current (A)	2.2	2.2
	TEC Maximum Voltage (V)	8.7	8.7
Optical Fiber Parameter	Fiber Diameter (µm)	105	105
	Fiber Cladding Diameter (µm)	125	/
	Fiber Coating Diameter (µm)	250	/
	Numerical Aperture	0.22	0.22
	Connector	SMA905,FC/PC	SMA905
Other Parameter	Operating Temperature (℃)	10-30	10-30
	Operating Relative Humidity (%)	75	75
	Storage Temperature (℃)	-20~70	-20~70
	Storage Relative Humidity (%)	90	90
	Pin Soldering Temperature,Max (℃)	250(10 Sec.)	250(10 Sec.)

Feature

Application
