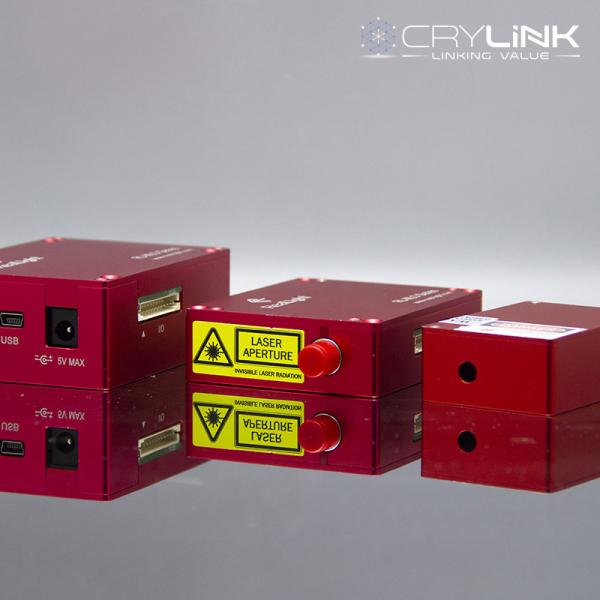

785nm Multimode Narrow Linewidth Laser Module NLO Series

  • 1
  • 2
  • 3

Brand Name : CRYLINK

Model Number : 785nm Multimode Narrow Linewidth Laser Module of NLO Series

Certification : ISO9001

MOQ : 1

Price : custom

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

785nm Multimode Narrow Linewidth Laser Module of NLO Series

The narrow linewidth laser module is a special product of our company. It is equipped with standard input and output interfaces, which can be easily embedded into the user’s whole system to achieve very stable narrow linewidth laser output. The product has built-in optimized optical feedback power stabilization module and Tec refrigeration module, which makes the product have good spectral characteristics and power stability characteristics. Customized and secondary development services can be provided according to customer requirements.(Download PDF)

Model CL785-MIW-500mW-NLO001 CL785-MIF(FP)-500mW-NLO002
Optical
Parameter		 Central Wavelength (nm) 785 785
Wavelength Tolerance (nm) ±0.5 ±0.5
Output Power (mW) 500 500
Line Width (nm) <0.1 <0.1
Wavelength Stability ± 0.007nm @ 8H Typ ± 0.007nm @ 8H Typ
Power Stability ±1.0%@8H ±1.0%@8H
Side Mode Rejection Ratio (dB) 40 40
System
Parameter		 Power Adjustment Range 0～100% 0～100%
Preheat Time (Min) 15 15
Fiber Interface Space Light FC/PC
Control Interface PH2.0-10P,USB PH2.0-10P,USB
Adaptive Optical Fiber 105µm,0.22NA 105µm,0.22NA
Power Input 4.9V-5.1V @2A 4.9V-5.1V @2A
System Power Consumption (W) <5 <5
Storage Temperature (℃) 0～55 0～55
Storage Humidity (RH) 0~80% 0~80%
Operating Temperature (℃) 10~35 10~35
System Weight (g) 150 150
System Size (mm) 76.2ⅹ63.5ⅹ22 76.2ⅹ63.5ⅹ22

  • Wavelength stability ± 0.007nm / ℃
  • Power stability <± 1.0%
  • Low power consumption, typical advantages <5W
  • Small size, 76.2 × 63.5 × 22mm
  • Optional USB control interface, hardware lock

  • Confocal microscope
  • Raman spectrometer
  • Fluorescence Spectrometer
  • Up-conversion material
  • Laser particle size analyzer
