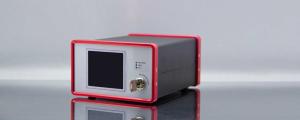

520nm Optical Fiber Output Accurate Wavelength Laser System of AWM Series

Brand Name : CRYLINK

Model Number : 520nm Optical Fiber Output Accurate Wavelength Laser System of AWM Series

Certification : ISO9001

MOQ : 1

Price : custom

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

520nm Optical Fiber Output Accurate Wavelength Laser System of AWM Series

Our quasi wavelength fiber coupled output semiconductor laser system can provide a variety of wavelength options. Fiber coupled output has excellent power stability. Product structure is small, portable, with user-friendly operation interface, perfect refrigeration system, can meet the different needs of users. Our company can also provide customized services according to the requirements of users.(Download PDF)

Optical Parameter

CL520-SIF(FA)-20mW-AWM007 CL520-SIF(FP)-20mW-AWM008 CL520-SIF(S)-20mW-AWM009
Central Wavelength (nm) 520 520 520
Wavelength Tolerance ±5 ±5 ±5
Output Power (mW) 20 20 20
Line Width (nm) 1 1 1
Fiber Interface FC/APC FC/PC SMA905
Power Stability ±1.0%@8H ±1.0%@8H ±1.0%@8H

System Parameter

CL520-SIF(FA)-20mW-AWM007 CL520-SIF(FP)-20mW-AWM008 CL520-SIF(S)-20mW-AWM009
Power Adjustment Range 0～100%
Preheat Time (Min) 15
Modulation Input 1KHz TTL or Analog signal 0～５V
Control Interface USB, BNC
Power Input 100-240VAC, 50/60Hz
Storage Temperature (℃) 0～55
Storage Humidity (RH) 0~80%
Operating Temperature (℃) 10~35
System Weight (Kg) 2.2
System Size (mm) 150×102×200

  • Built-in TEC, power stability is better than ± 1% @ 8H
  • Multiple wavelengths available
  • Including host computer control, short circuit protection and other functions
  • Multimode fiber optiona

  • Flow cytometry
  • Confocal microscopy
  • Fluorescence excitation
  • Granularity measurement
  • Super-resolution microscopy
