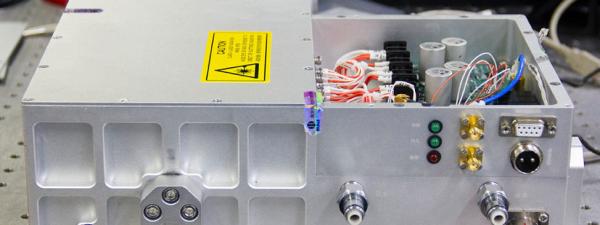

Lidar Research RS422 532nm Continuous Solid State Laser

Brand Name : CRYLINK

Model Number : 532nm Single Frequency Continuous Laser

Certification : ISO9001

MOQ : 1

Price : custom

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

532nm Single Frequency Continuous Laser

(Download PDF)

Model CL532-30W-SFCL001
Optical Parameter Central Wavelength (nm) 532±1
Output Power (W) 5～30
Line Width (KHz) ＜10
Frequency Stability (MHz@30min) ＜3
Power Stability ＜±0.5%@2h
Power Adjustable Range 10%-100%
Beam Diameter( 1/e2) ＜2
Beam Quality M2 ＜1.5
Beam Divergence Angle (mrad) ＜0.5
Spectral Line Width (nm) ＜±0.5
Polarization Extinction Ratio ＞100:1
Function Parameter Output Method Spatial Light Output
Control Interface DB9,RS422
Powered by 220VAC/50Hz
Output Power (W) ＜300
Environmental Requirements Operating Temperature (℃) 0 ~ 30
Storage Temperature (℃) -10 ~ +60
Humidity 0-80%
Weight and Size Laser Head Weight (Kg) ＜15
Power Weight (Kg) ＜5
Laser Head Size 444*232*150
Power Size 2U

  • Front-end fiber + back-end solid frequency doubling
  • Highly stable sigmoid resonator
  • PDH frequency lock technology
  • Wavelength can be extended
  • Titanium sapphire pump
  • Lidar
  • Scientific research.
